| BASIC INFO |
| Model No. |

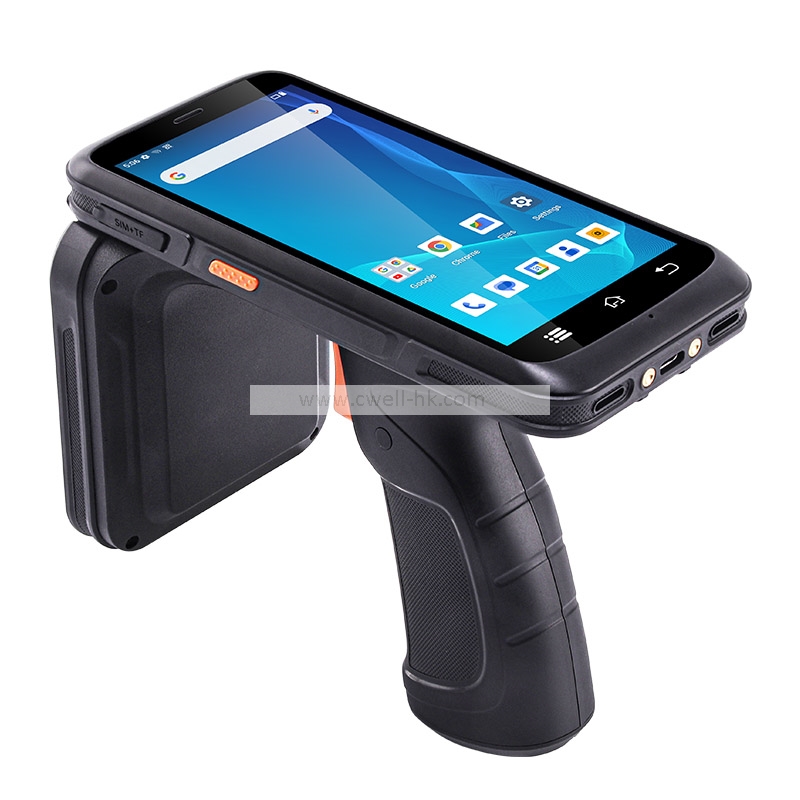

UNIWA
RF550 |
| Operating system |
Android
13 |
| Dimension |
171*88*138mm |
| Weight |
690g
(including battery) |
| Material |
Plastic |
| Color |
Black |
| Languages |
Multi-language |
| HARDWARE |
| Display |
5.5
inch IPS capacitive multi-touch screen, 1440*720px |
| Processor |
Mediatek
MT6762 octa core, up to 2.0GHz; GPU:
IMG GE8320, 650MHz |
| RAM |
3GB
RAM (4GB RAM optional) |
| ROM |
32GB
ROM (64GB ROM optional), support TF card up to 256GB maximally |
| Camera |
Single
Camera: 16MP AF rear camera with flashlight (5.0MP front camera optional) |
| Speaker |
1.2W*1 |
| Battery |
Removable
3.85V/10700mAh Li polymer battery, 18W fast charging |
| Buttons |
Scan
button*2, Power button, Volume+/-, handle button |
| Sensor |
Acceleration
sensor, proxmity sensor, light sensor, gravity sensor |
| NETWORK
& CONNECTIVITY |
| Bands |
2G:
GSM 850/900/1800/1900MHz |
| 3G: WCDMA 850/900/1900/2100MHz |
| 4G: FDD-LTE B1/B2/B3/B5/B7/B8; TDD-LTE: B34/B38/B39/B40/B41 |
| WiFi |
IEEE
802.11a/b/g/n/ac, support 2.4GHz/5GHz dual-band WiFi |
| BT |
V5.0 |
| GNSS |
Support
GPS/GLONASS/Beidou/Galileo |
| NFC |
Support |
| I/O
INTERFACES |
| Nano SIM Slot |
*2
or 1 SIM+ 1 TF card |
| 3.5mm Audio jack |
*1 |
| USB Type-C port |
*1 |
| Charging Contacts |
*2 |
| SECONDARY
DEVELOPMENT ENVIRONMENT |
| Development language |
Java |
| API |
Android
standard interface |
| OPTIONAL
FUNCTIONS |
| 2D scanning module |
Optional:
Zebra SE4710 or Honeywell N5703 |
| UHF RFID |
Optional |
| RELIABILITY |
| Waterproof Grade |
IP67 |
| Anti-Drop |
1.2m |
| Temperature Range |
Operating: -20℃～+55℃ Storage: -40℃～+70℃ |
| Humidity Range |
0~95％ |
| Electrostatic Discharge |
±15KV（air
discharge），±8KV（Contact discharge） |
| ACCESSORIES |
| Power Adaptor(5V/2A) |
*1 |
| USB cable |
*1 |
| User manual |
*1 |
| Charging dock |
Optional |
| Scanning handle |
Optional |
