WinPad W107-Windows Tablet PC-Tablet PC/TV Box

WinPad W107

  • WinPad W107
  • WinPad W107
  • WinPad W107
  • WinPad W107
  • WinPad W107
  • Product Scores:
  • Model No.:WinPad W107
  • Standard Price:$ 1115.6~$ 1193.8/piece (Notice: the detailed price based on order quantity)

Price down noticeclose ×


Features & Specification

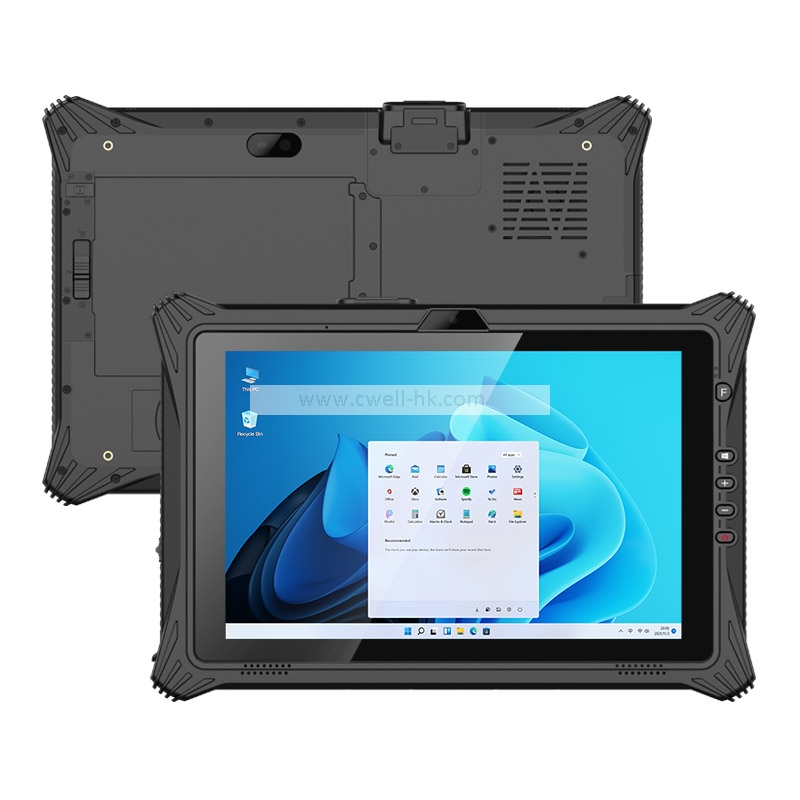

WinPad W107 10.1 Inch Raggedized Industiral USB i5 i7 8GB RAM 256 GB LTE Windows Rugged Tablet
1) IP65 Waterproof
2) Intel I5-8250U Quad Core Processor
3) 8GB RAM+128GB ROM
4) 10.1 Inch Anti-Scratch FHD Screen
5) Hot Swap Dual Batteries
6) Support 4G LTE
7) Built-in U-blox M8Q GPS Module
8) Fingerprint/1D/2D Optional

Basic info
Model No. Winpad W107
Style Windows rugged tablet
Material Plastic
Color Black
Dimension 290*196*22mm
Weight 1390g (include battery)
Keys Volume+/-, windows key, power key, scanner key x1
Default language Multi-languages
Screen 10.1 inch 7H anti-scratch capacitive touch screen, 1920*1200px, 400cd/㎡
Indicator light RGB
Operation System Windows 10 Home ( Pro and IoT version optional)
CPU Intel Core i5-8250U quad core 4M Cache, 3.4GHz (Intel Core i7-8550U optional)
GPU Intel UHD Graphics 620
RAM DDR4L 8GB RAM (16GB RAM optional)
ROM Removable 128GB SSD (256GB/512GB optional)
TPM Built-in TPM2.0  SLB9665T
Small battery Build in 7.4V/860mAh Lithium-ion polymer battery
Big battery Hot swap pluggable 7.4V/5000mAh Lithium-ion polymer battery
Endurance: 5hrs (default 50% volumn, default 200nit, play 1080P HD video)
Power adaptor 19V/3.42A/65W
Sensors Gravity acceleration sensor
Fan IPX5 fan x1
Band 2G: GSM: B3/B8
3G: WCDMA: B1/B8
4G: LTE FDD: B1/B3/B7/B8/B20/B28A
WIFI IEEE802.11a/b/g/n/ac, dual band wifi (wifi 6 optional)
BT V4.2 (BLE
GNSS U-blox M8Q module, Support GPS/BDS/GLONASS/A-GPS
I/O Interfaces
SIM card x1
TF card x1
USB Type-A 3.0 x1
USB Ty.0pe-C 3 x1
3.5mm Earphone Jack x1
HD-MI 1.4a Mini x1
Speaker 8Ω/0.8W waterproof speaker x 1
Mic Sensitivity:-42db, Output resistance:2.2kΩ
DC-in ∮5.5mm Power connector  x1
Pogo pin 12 Pin x1
Ethernet interface Optional, RJ45 board, (10/100M) Ethernet interface x1
Serial port Optional, DB9 board, (RS232)9-line full function x1
USB2.0 Optional, USB2.0 Big USB x1
Camera Front camera: 2MP
Rear camera: 8.0MP with LED flashlight
Other Functions
Fingerprint SPI Fingerprint x1
1D barcode  Optional, Honeywell  N6551/Optical resolution: 5mil/scan speed: 50 times /s serial port
2D barcode  Optional, Honeywell N3680/Optical resolution:5mil/scan speed:50 times /s
Waterproof IP65 waterproof
Drop-proof 1.22m drop test
Temperature range Operating: '-20 °C to 60 °C;   Storage: '-30 °C to 70 °C
Humidity range 95% Non-Condensing
Certificates MIL-STD-810G etc.
Charger x1
Wrist Strap x1
Back jacket x1
User manual x1
